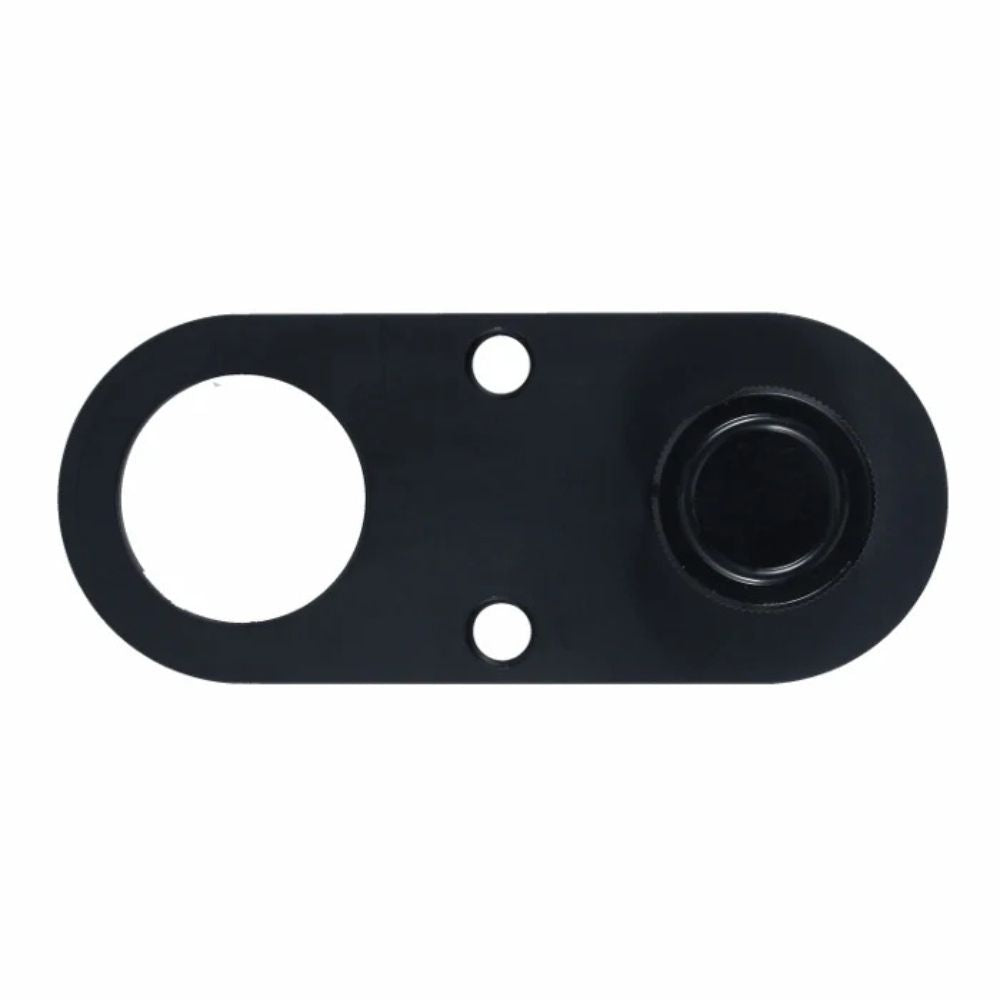

Vixen PF-L II Attachment Bracket

It allows you to use an polar alignment scope PF-LII, polar alignment scope PF-L or SX polar axis scope for the POLARIE U.

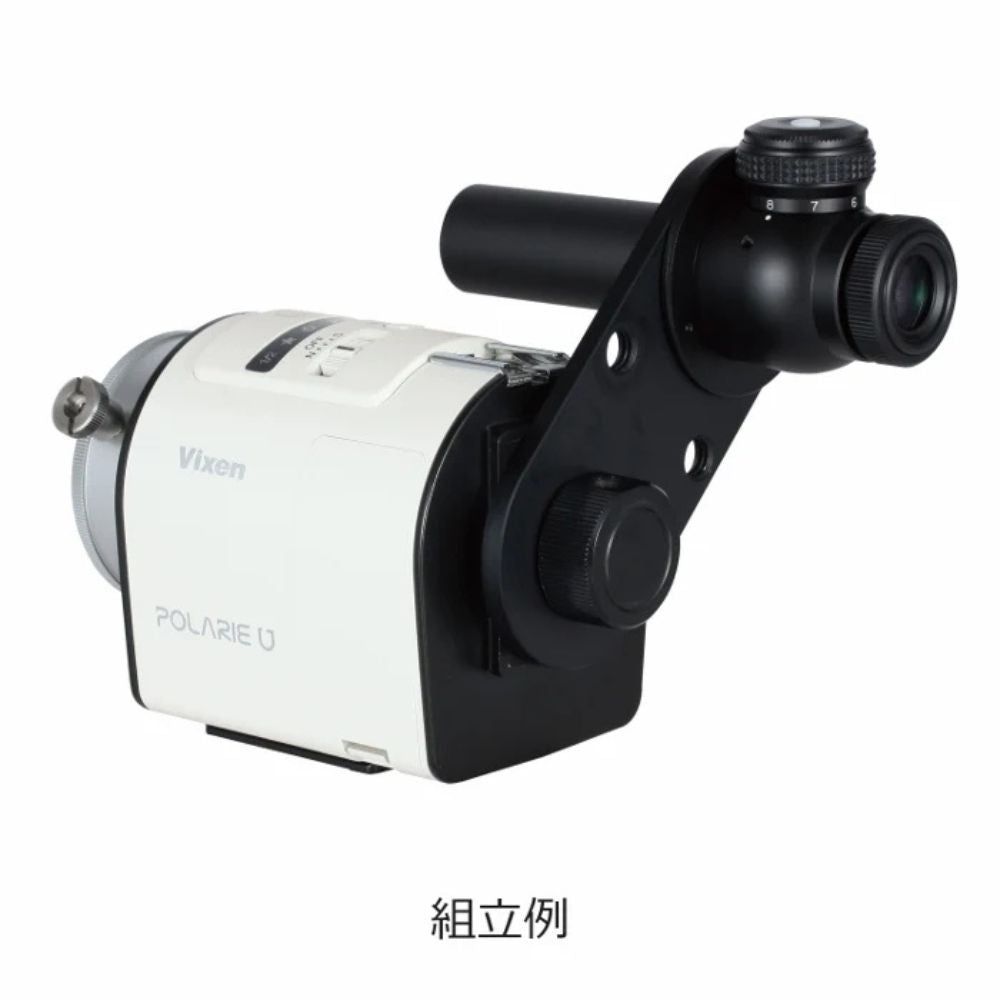

The polar scope arm bracket can be attached to the 3/8-inch socket on the bottom (rear) of the POLARIE U after unscrewing the 1/4" to 3/8" conversion socket screw. If this is the case, the removed conversion socket screw can be stored by screwing into the 3/8" holes on the arm bracket to avoid losing.

Specifications

• Attachment thread: 34mm in diameter and pitch 0.75mm
  Screw holes: 3/8-inch hole x 2

• Usable with: Polar alignment scope PF-LII, Polar alignment scope PF-L, SX polar axis scope

• Dimensions: 120 x 50 x 5mm

• Weight: 74 g / 2.64 oz.
