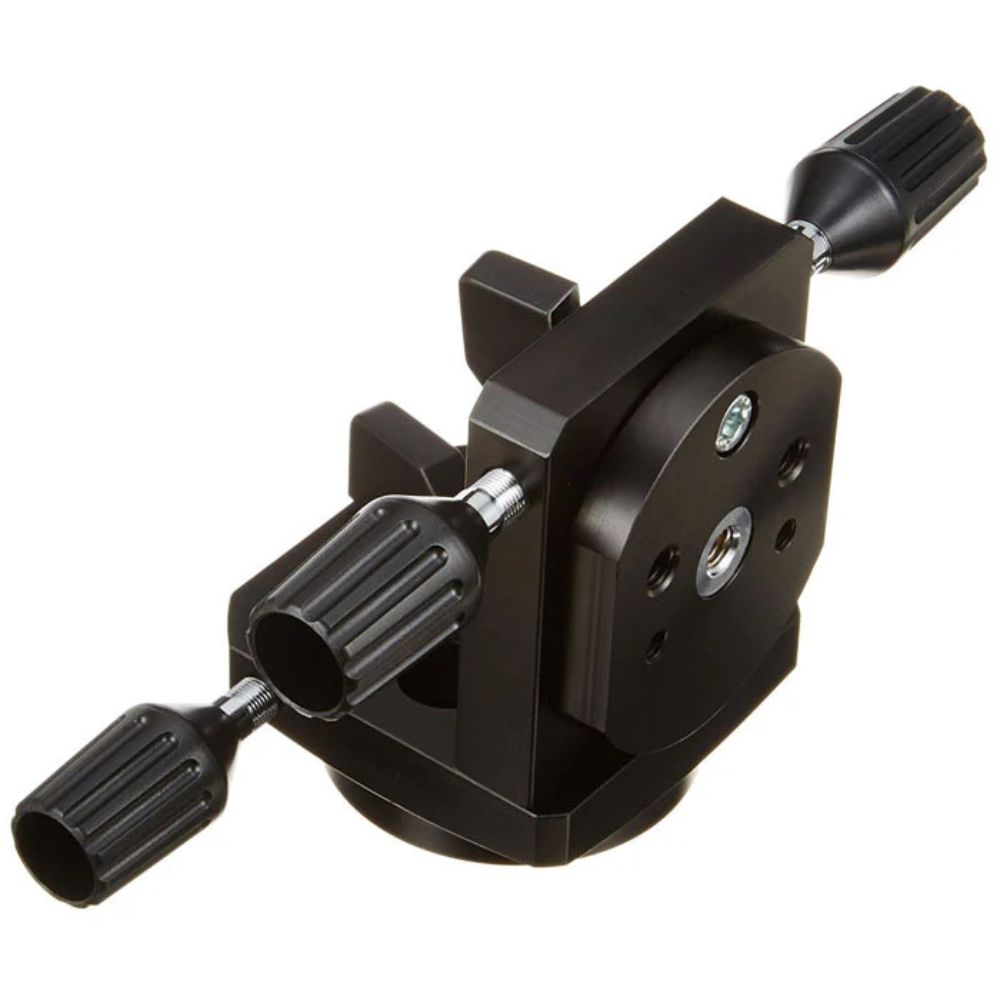

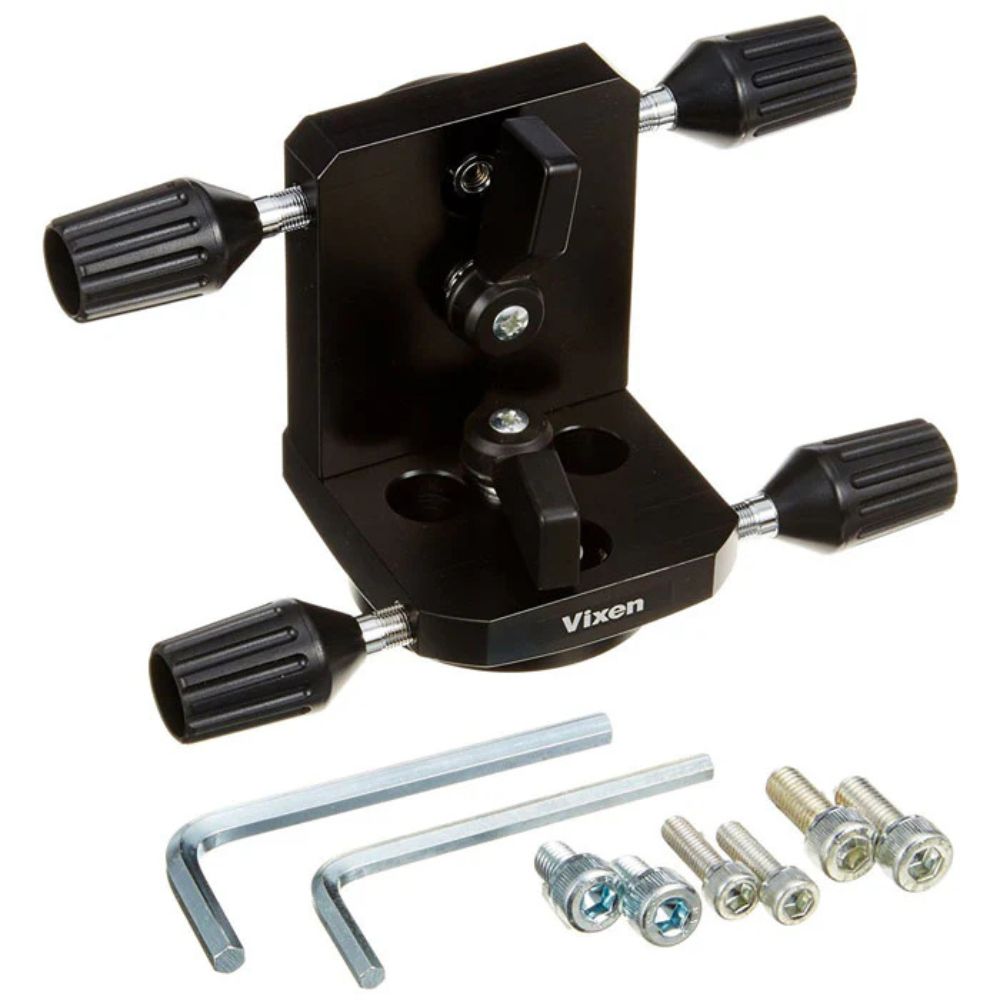

Vixen Telescope Guide Mount XY

A low-profile mount for installing a guide scope

Guide Mount XY is designed for use in astrophotography and makes finding a guide star a sinch. A low profile mount used for installing a guide scope of 80mm or less. The altitude and azimuth fine adjustment screws allow you to adjust the orientation of a guide scope by +/-6.5 degrees in each direction. The Guide Mount XY can be installed on Vixen's Multi Plate DX (Item #2576), AXD Multi Plate (Item #36918), or Dovetail Mounting Block (Item #3810).

Specifications

• Loadable Optical Tube Size: Effective aperture under 80mm (recommended)
  Altitude/Azimuth Fine Adjustment: Tangent Screw with fine adjustment knobs

• Movable Range: +/- 6.5 degrees

• Plate Attachment Base: Hole for M8x2 (35mm space)

• Mount Base: Screw Hole for M6x2 (35mm space) and M8x2 (35mm space)

• Size: 100mm x 79mm x 160mm

• Weight: 750g
