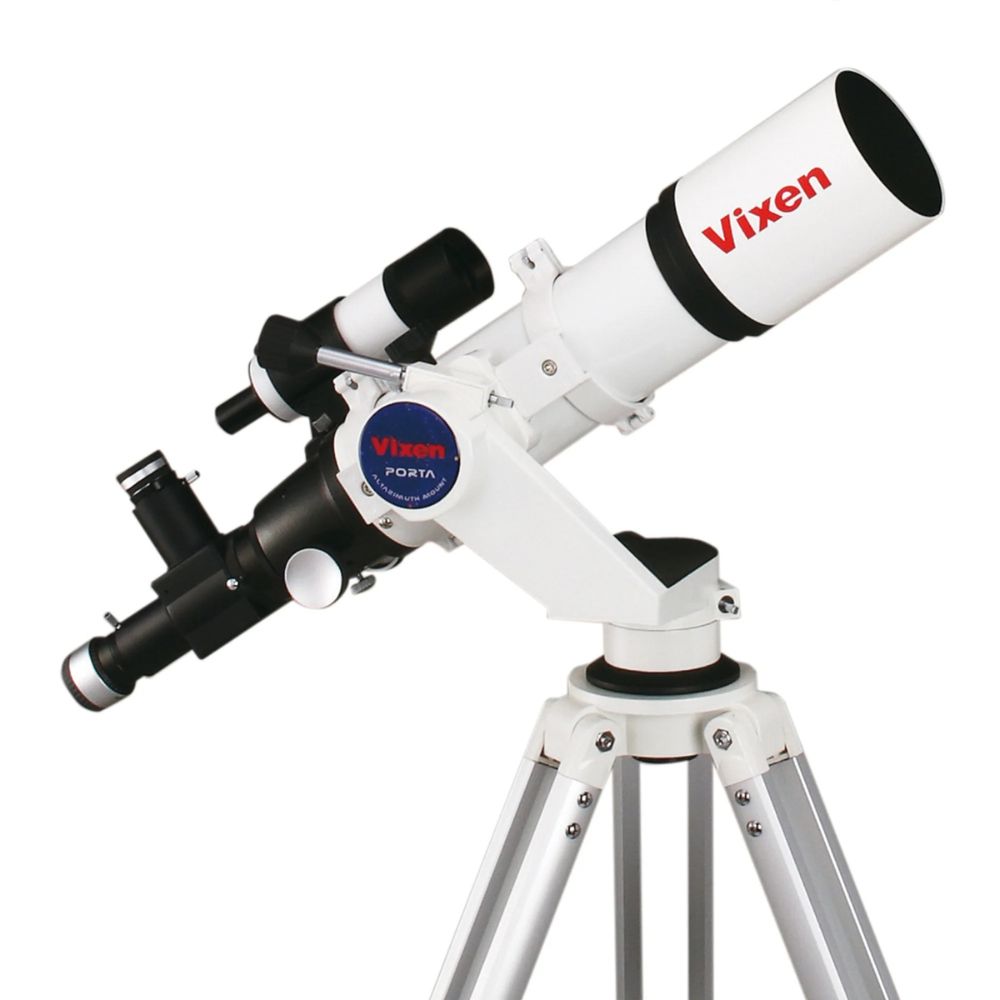

Vixen ED80Sf Porta II Refractor Telescope

Vixen ED80Sf Porta II Refractor Telescope

The ED80Sf Porta II is a compact 80 mm ED apochromatic with a travel-friendly design and a high-contrast, true-color image quality. When used in combination with the Porta mount, the ED80Sf is the ideal travel telescope for on-the-go observations of eclipses, deep-sky objects and the planets. The exceptionally complete set includes a carry case for the telescope, a Crayford focusing drive, a 9x50 finder, flip mirror and Porta mount. The Porta mount can be easily adjusted via a slip clutch mechanism, meaning there is no need to pull a clamping lever.

Includes

• ED80Sf telescope
• Porta II mount with tripod
• High-speed 9x50 finderscope
• 2 eyepieces, NPL6 and NPL20 mm
• Flip mirror with T2 camera connection
• Tube clamps
• Dovetail bar
• Shafts for fine adjustment
• Accessory shelf
• Mounting tool
• Carry case for telescope


Features

• ED apochromatic refractor
• Ideal travel telescope
• High-contrast, true-color image quality
• 80 mm aperture, 600 mm focal length, f/7.5
• Porta II mount with tripod, altazimuth
• High-speed 9x50 finderscope
• Flip mirror unit and two eyepieces (NPL6 mm and NPL 20 mm)
• 2'' eyepiece adapter
• Carry Case


Specifications

• Optical design: Apochomatic Refractor

• Mirror/Lens diam:80 mm

• Focal length and Aperture ratio: 600 mm f/7.5

• Visual limiting magnitude: 11.3 (approx., mag)

• Finderscope: 9x50 mm

• Mount Type: Azimutal

• Type of coating: Multi-coated

• Eyepiece Barrel Diameter: 31.7 mm

• Maximum load capacity: 5 kg
