In addition to the tried and tested 1-4x24 models, there is now also the driven hunt rifle scope 1-6x24 with a sensational field of view of around 38 m to 100 m. There is a choice of 2 reticles; The well-known duplex reticle with a small illuminated dot and a MilDot-like reticle where the cross is illuminated. With both glasses, the setting for the dimmable illuminated reticle is not on the eyepiece, but on the left, next to the adjustment towers.

Since the respective reticle lies in the 2nd image plane (eyepiece image plane), the reticle does not enlarge with increasing magnification. All Vixen riflescopes offer fully coated and bright optics with a very sharp image up to the edge of the field of view. The Vixen riflescopes are waterproof, nitrogen- filled and have a Full Multicoating Pro coating. There are no reflections in the picture. And even with backlight or snow, you have an excellent clear picture. Vixen has now designed a simple reflex or red dot visor with simple magnification and a dimmable illuminated dot especially for short distances, e.g. for driven hunts.

Specifications

• Model: ES5929 / ES5930 / ES5947 / ES82251

• Series: 30mm-6X-IR

• Brand: Vixen

• Color: Black

• Weight (oz.): 14.8

• Height (inches): 1.80

• Width (inches): 2.50

• Length (inches): 11.00

• Battery: CR2032
• Magnification: 1 to 6

• Objective Lens Diameter: 24mm

• Glass: Japan

• Focal Plane: Second
• Field of View (Ft. / 100 yds.): 28.5 - 7.7

• MOA Adjustment (at 100 yds.): 1/4: 100MOA
• Tube Diameter: 30mm

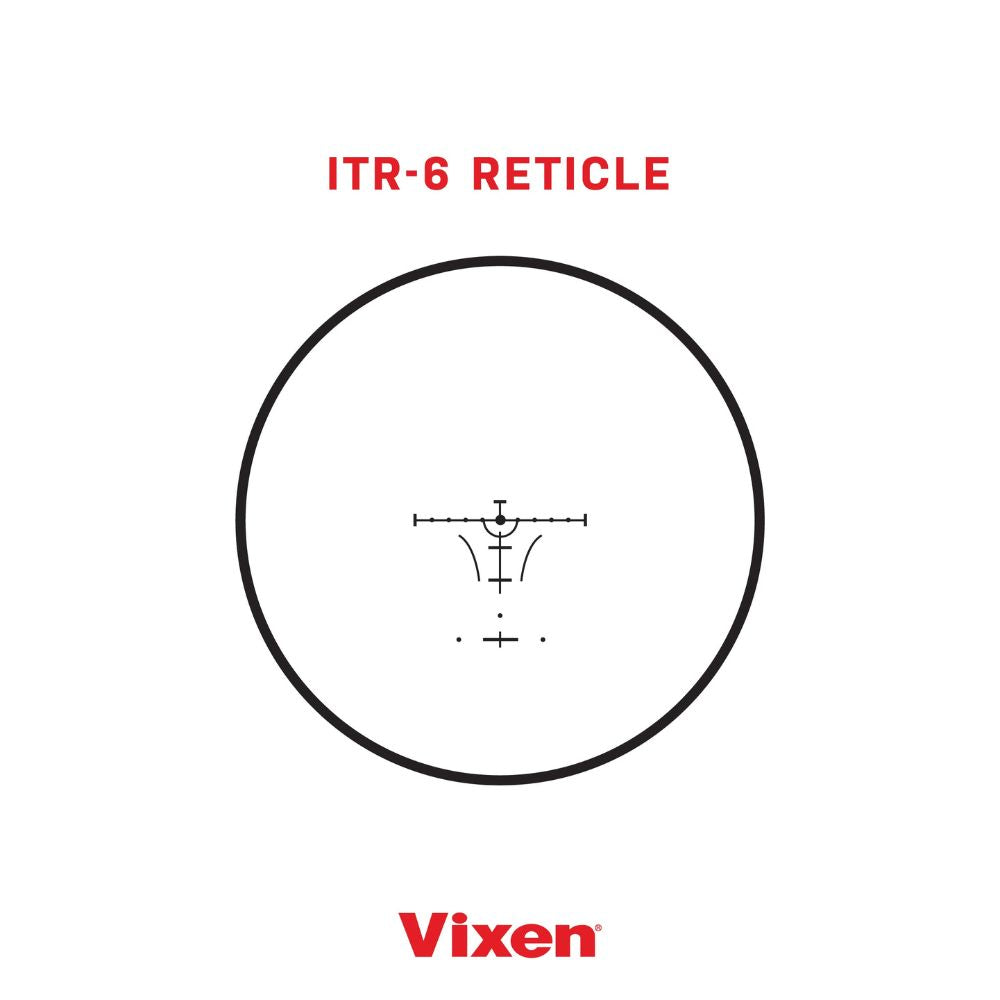

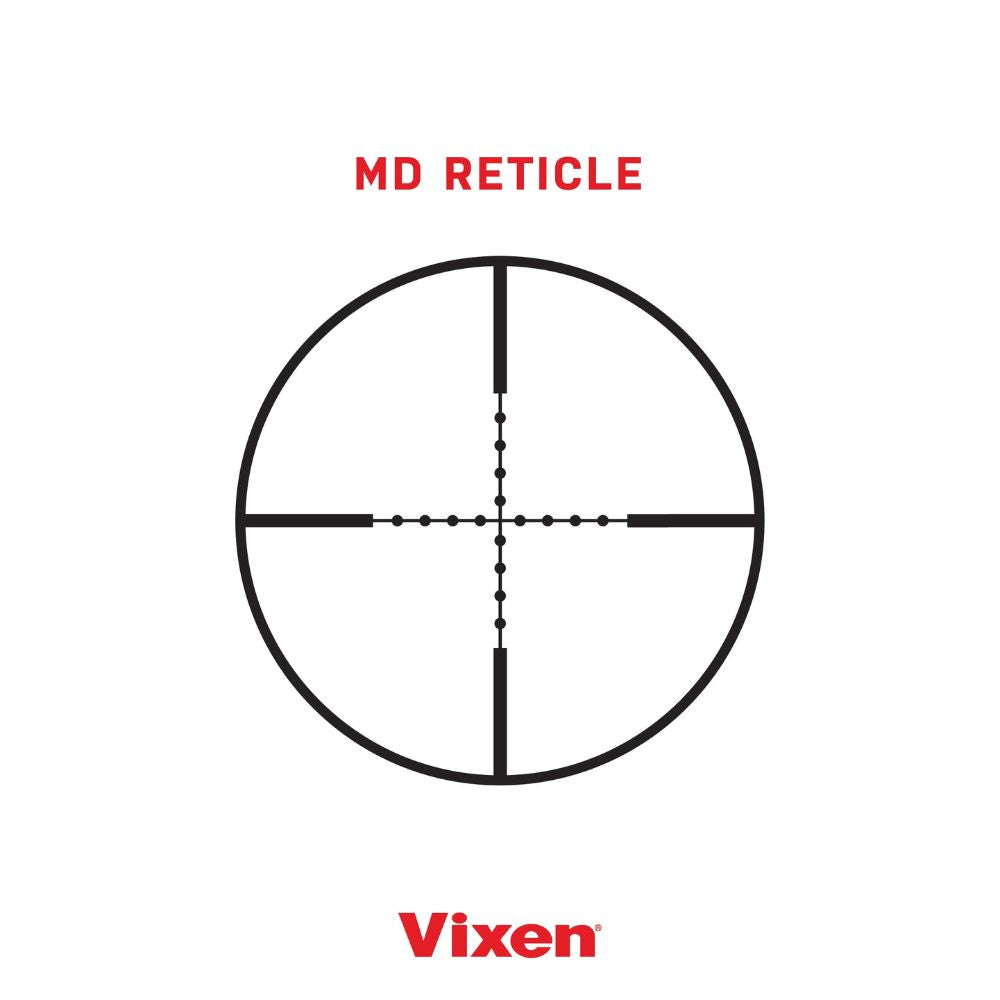

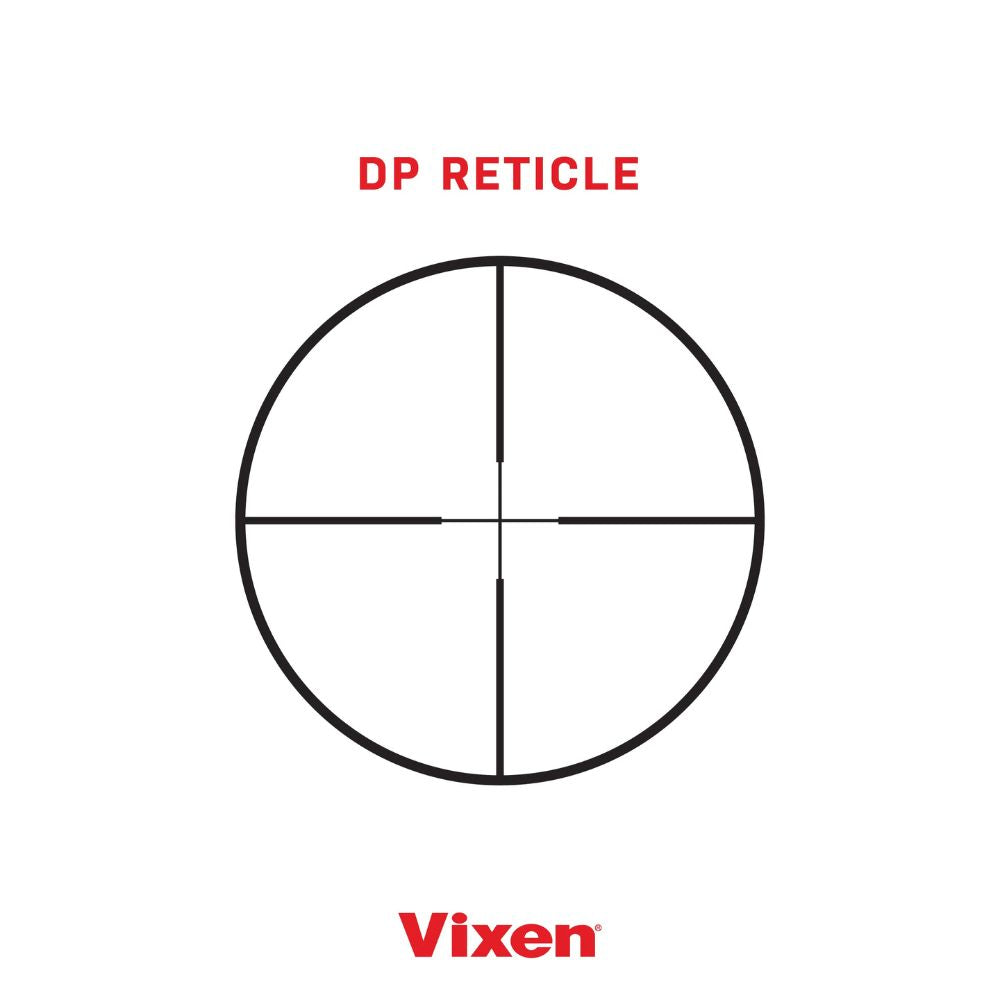

• Reticle: IR MIL DOT / IR DP / IR ITR-6 / IR MIL DOT
• Eye Relief (inches): >3.9
• Exit Pupil (mm): 4.0 - 3.3
• Parallax Free at (yds.): 100
• Country of Origin: Japan
